G Series
G610 Thin Client
The G610 thin client is powered by high efficient AMD Ryzen™ Embedded R2000 Processor for four 4K displays
- Designed with the AMD Ryzen™ Embedded R2000 platform
- Fanless design for long life span
- Support four 4K displays (4 x DP)
- Support up to 8 USB ports
- Optional COM (alternative to USB 2.0 x 2)
- Optional Fiber LAN
- Optional TPM 2.0
- Optional smart card reader
- Optional Wi-Fi module (M.2 2230 E Key Socket)
Contact Us
Share:
Share:FEATURES

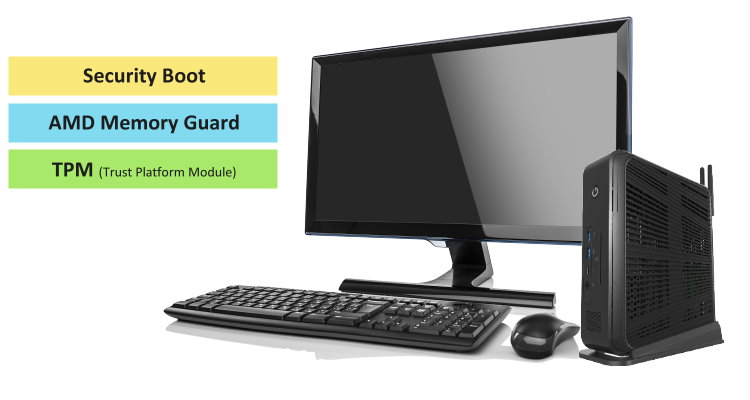

Meet the needs of information security for all industries.

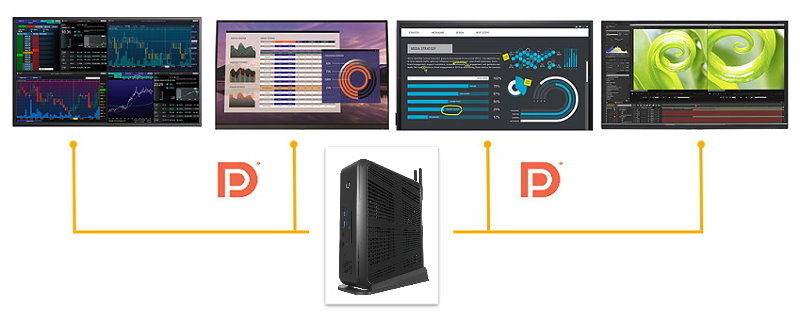

Support Four Displays and 4K Resolution
Excellent Multimedia Performance Supporting Four 4K Displays (Four Display Ports)
Support VESA Mount
Support Desk Mount

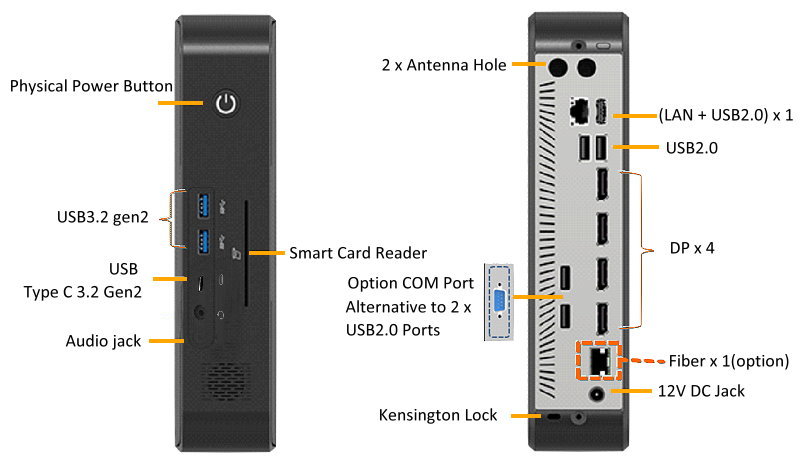

G600 Thin Client I/O Drawing
SPECIFICATION
G610 Thin Client
| Processor | CPU | AMD Ryzen™ Embedded R2514 processor 2.1GHz base clock up to 3.7GHz boost frequency, Quad-Core four threads |
|---|
| Memory | RAM | x 2 SO-DIMM socket for DDR4 2667MHz RAM up to 32GB ( support dual channel ) |
|---|
| Display | Max. Resolution | Up to 4096 x 2160 @ 60Hz |
|---|
| Audio | Speake: | x 1 ( built-in 0.5W internal speaker ) |
|---|
| Storage | Onboard eMMC from 8GB to 32GB ( manufacturing option ) x 1 M.2 connector for SSD (disabling eMMC in BIOS is required ) |
|---|
| I/O Physical | USB3.2 Gen 2 | x 2 ( front x 2 ) |
|---|---|---|
| USB2.0 | x 6 ( rear x 6 ) | |
| USB Type C 3.2 Gen 2 | x 1 ( front x 1 ) support DP Alt mode ( DP 4 alternative ) | |
| DP 1.2 | x 4 ( DP4 is disabled when USB type-C is connected to a monitor ) | |
| 3.5mm Headset Jack | x 1 Support TRRS |
| Security | TPM (Trust Platform Module ) | x 1 on board ( manufacturing option ) & Kensington Lock |
|---|---|---|
| Processor Security | Support - AMD Memory Guard |
| Networking | LAN | x 1 ( RJ45,10/ 100/ 1000 Base-T ) |
|---|---|---|
| Fiber Optic LAN | x 1 ( manufacturing option, alternative with RJ45 ) | |
| WLAN | x 1 M.2 E key (Optional module) |
| Environment | Temperature |
|
|---|---|---|
| Relative Humidity | 20% to 80% non-condensing |
| Other Expansion | Smart Card Reader | OmniKey 3121 (Optional) |
|---|---|---|
| COM | x 1(Manufacturing option, alternative to USB2.0x 2) |
| Power | Power Supply | 60W, DC 12V/5A external power adapter |
|---|
| Compatible OS | Win10 IoT Enterprise, Linux per request |
|---|
| Mounting | Metal VESA Mounting kit | (Optional) |
|---|
| Mechanical | Kensington Lock | Yes |
|---|
| Physical Characteristics | Chassis Housing/Color | Plastic and metal/ Black |
|---|---|---|
| Dimension | 53(W) x 230(H) x 210(D) mm(w/o stand) |
| Regulatory Compliance | FCC/ CE/ LVD/ UKCA/ ICES-003 Issue 7 |
|---|
Specifications subject to change without notice.
