10ZiG Endpoint Solution (Software and Hardware)

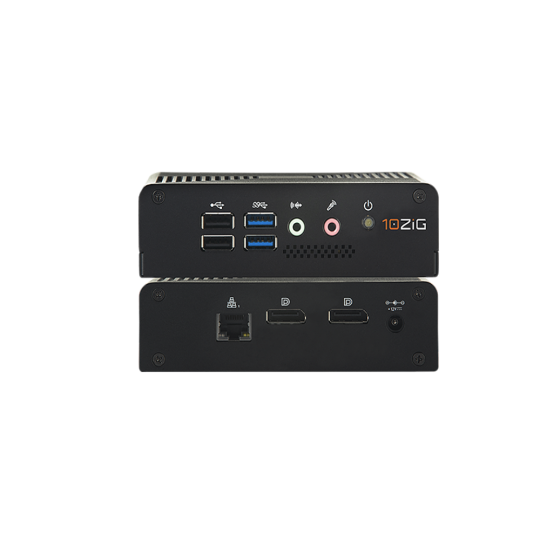

10ZiG Endpoint Device 4600q
The 10ZiG 4600q Series is an Ultra-compact, Entry-level Value Class Model, Ideal for task workers
- Operating System: PeakOS™, NOS™ or Win10 IoT Enterprise
- Intel Celeron N3160 Quad Core 1.60GHz
- Zero Client. Fast. Secure. Seamless
- 2 x USB 2.0, 2 x USB 3.0
- Dual DisplayPort 3840 x 2160 @ 30Hz
- Optional : Wi-Fi , VESA Mount
- Supportive of VMware, Citrix, Microsoft, Amazon WorkSpaces, and more
Contact Us
Share:
Share:FEATURES
Robust Aluminum & Metal Chassis
Fanless Design
Space-saving Fanless design
I/O Port
.png)
|
NOS Operating System
|
|
PEAKOS Operating System
|
|
Windows 10 IoT
|
SPECIFICATION
10ZiG Endpoint Device 4600q
| Processor | CPU | Intel® Celeron® N3160 Quad-Core 1.6GHz up to 2.24GHz |
|---|
| Memory | x 1 SO-DIMM socket for DDR3L 1600MHz RAM up to 8GB |
|---|
| Display | Resolution | Up to 3840 x 2160 |
|---|
| Audio | Speaker | x1 (Built-in 0.5W internal speaker) |
|---|
| Storage | x 1 mSATA connector Onboard eMMC 8G-32G |
|---|
| I/O Physical | DP | x 2 (Max. Resolution up to 3840 x 2160 @ 30Hz) |
|---|---|---|
| USB 3.2 Gen 1 | x 2 (front) | |
| USB 2.0 | x 2 (front) | |
| COM | x 1 (optional) | |
| DC Jack | x 1 | |
| Line-out | x 1 |
| Networking | LAN | x 2 (RJ-45,10/100/1000 Base-T, one of the port is option) |
|---|---|---|
| WLAN | x 1 (optional, M.2 2230 E key socket) |
| Environment | Temperature: |
|
|---|---|---|
| Relative Humidity: | 20% to 80% non-condensing |
| Power Supply | 24W, DC 12V/2A external power adapter |
|---|
| Mounting | VESA Bracket (Optional) |
|---|
| Compatible OS | PeakOS™, NOS™, Win10 IoT Enterprise, Linux per request |
|---|
| Physical Characteristics | Chassis Housing/Color | Metal/Black |
|---|---|---|
| Dimension (mm) | 130(W) x 125.4(D) x 32(H) |
| Regulatory Compliance | CE/FCC/LVD |
|---|
