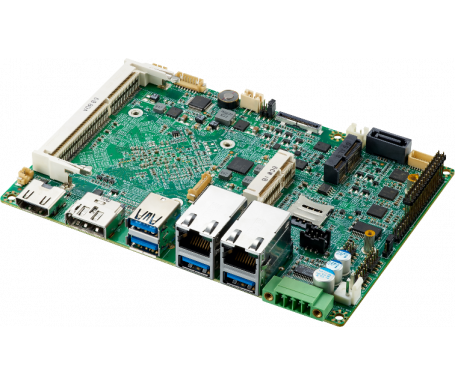

Saber_AL_3500-side

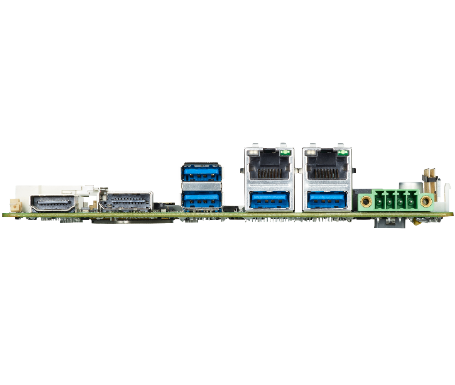

Saber_AL_3500-IO

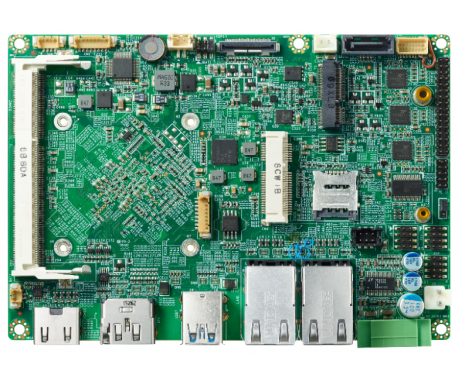

Saber_AL_3500-front

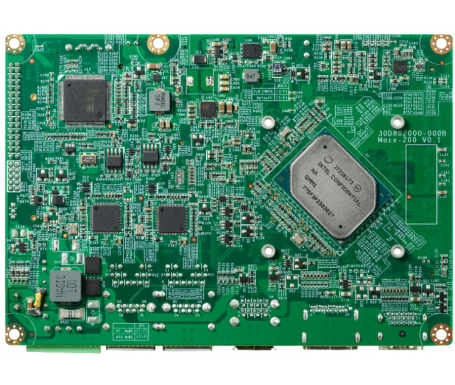

Saber_AL_3500-back
Saber 系列

Saber-AL-3500 單板電腦

3.5" SBC with Intel Apollo Lake Platform, Triple Displays, Rich COM Ports, single board computer, industrial motherboard, embedded motherboard, industrial embedded motherboard, industrial computing motherboard, Clientron, 工業電腦，單板電腦，無風扇電腦主機板
  • Onboard Intel® Atom™ E39xx processor family
  • Support DP/HDMI/eDP
  • Support three RS-232/422/485
  • Wide temperature -40° to 85° C
  • Wide voltage 9V~30V DC
聯絡我們 分享:

特色

Saber-AL-3500 單板電腦 with Triple Displays
Triple Displays
enabling three simultaneous displays with independent DisplayPort, HDMI and eDP outputs


Saber-AL-3500 單板電腦 with Rich COM Ports
Rich COM Ports
flexible I/O for more expansion & connectivity



Saber-AL-3500 單板電腦, flexible I/O for more expansion & connectivity



Saber-AL-3500 單板電腦 with Wide Temperature
Wide Temperature
from -40°C to 85°C in the harsh industrial environment


Saber-AL-3500 單板電腦, onboard Intel Atom E39xx processor family features 9V~30V DC wide voltage input
Wide Voltage
onboard Intel® Atom™ E39xx processor family features 9V~30V DC wide voltage input



Saber-AL-3500 單板電腦 with wide voltage








規格

Saber-AL-3500 單板電腦

Processor CPU:
  • Intel® Atom™ x5-E3930 Dual Core, 1.3GHz, 2 MB L2 Cache
  • Intel® Atom™ x5-E3940 Quad Core, 1.6GHz, 2 MB L2 Cache
  • Intel® Atom™ x7-E3950 Quad Core, 1.6GHz, 2 MB L2 Cache
  • Intel® Celeron® N3350 Dual Core, 1.1GHz, 2 MB L2 Cache

Memory		 RAM: x 1 SO-DIMM socket for DDR3L up to 8GB
External Connector HDMI: x 1
DisplayPort: x 1
USB3.0: x 4
Power: x 1  (4 pin terminal block)
Internal Connector eDP: x 1
SATA III: x 1
M.2 2230  E-key socket: x 1 (for WiFi)
Mini PCI-E: x 1 (for 3G/4G/mSATA)
RS-232: x 1 (with pin header)
RS-232/422/485: x 3 (with pin header)
USB 2.0: x 2 (with pin header)
8bit GPIO: x 1 (with pin header)
Micro SIM socket for mini PCIe: x 1
COM1~4 Active lighting signal: x 1 (with pin header)
Networking LAN: x 2 Intel® I210-IT (Without Wide Temperature  Version x 2 Intel® I211-AT) (10/100/1000Mbps)
Audio Speaker-out: x 1 (with pin header)
Line-out: x 1 (with pin header)
Mic-in: x 1 (with pin header)
Others TPM: TPM 2.0 (manufacturing option)
Watch dog Timer: System reset, programmable via software from 1 to 255 seconds
Environment Temperature:
  • Operation: -40° to 85° C (Without Wide Temperature  Version 0° to 60° C )
  • Storage: -40° ~ 85° C
Relative Humidity: 10% to 95% non-condensing
Power Power Supply: 9V ~ 30V DC with 4 pin terminal block
OS Support Win10 IoT Enterprise / Linux per request
Physical Characteristics Dimension: 142 (W) x 102 (L) mm
Regulatory Compliance CE / FCC Class A

下載

檔案名稱
檔案類型
日期
下載
Single Board Computing Saber-AL-3500 Datasheet
2018.05.24
