PSL 系列
PSL540 AIO Printer POS Terminal
Stylish 14 inches all-in-one POS System with 3-inch fast thermal receipt printer
- 14” LED backlight panel with bezel-free capacitive touch
- Low power consumption N3160 1.6Ghz processor
- Easy extended stand design
- Fanless design
- IP64 on front bezel
- Built-in 3” easy removable thermal printer
- Flexible for 2" thermal printing paper
- Versatile peripheral 4.3” 2nd display, VFD, RFID, WiFi+BT, 4G LTE
特色
Easy Extended Stand Design
Easy Replaceable 3" Printer Integrated
.jpg)

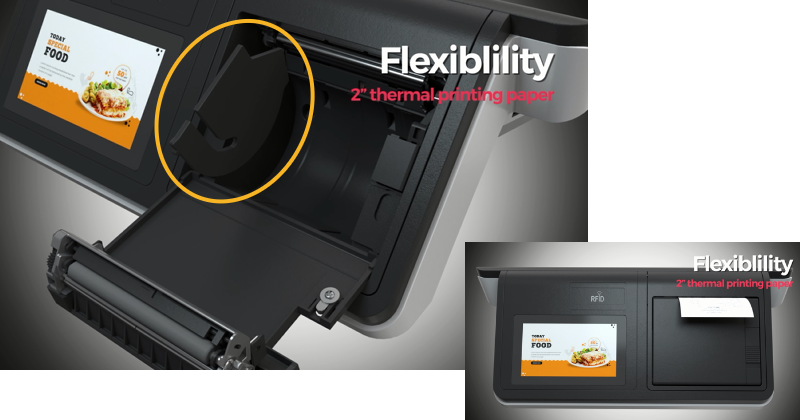

Flexible Choice of 3" or 2" Thermal Printing Paper
Optional VFD or 4.3" 2nd display, RFID
.jpg)
VESA Mount Support
embedded scanner inside for receipts / loyalty cards / e-payments
I/O Interface
規格
PSL540 AIO Printer POS Terminal
| Display | Display Size: | 14" TFT LCD |
|---|---|---|
| Max. Resolution: | 1366 x 768 | |
| Brightness/ Color | 220 cd/m2, 16.7M colors | |
| Backlight: | LED |
| Touch Panel | Type: | Projected Capacitive touch |
|---|
| Processor | CPU/ Chipset: | Intel® Celeron N3160 Quad-Core 1.6GHZ BRASWELL |
|---|
| Memory | X 1 SO-DIMM socket supports up to 8GB |
|---|
| Storage | X 1 (M.2 SATAIII SSD) |
|---|
| I/O connectors | USB 3.0: | X 4 |
|---|---|---|
| Powered COM (RS232): | x 2 (DB9 powered COM 5V/ 12V selected) | |
| Cash Drawer Port: | X 1 (24V RJ11) | |
| LAN: | X 1 (RJ45 10/100/1000 Base-T) | |
| DC In: | Lockable 3-pin DC input |
| 3” Thermal printer | X 1 |
|---|
| Optional Peripherals | 4.3” 2nd display/ VFD/ RFID/ WiFi+BT/ 4G LTE/ MSR/ iButton |
|---|
| Power Supply | 19V 90W power adapter |
|---|
| OS Support | POSReady 7/ Win 10 IoT Enterprise |
|---|
| Environment | Temperature: |
|
|---|---|---|
| Relative Humidity: | 20% to 80% non-condensing |
| Dimension | 352.8(W) x 129.8(H) x 313.2(D) mm |
|---|
| Certifications | CE / FCC / LVD |
|---|
