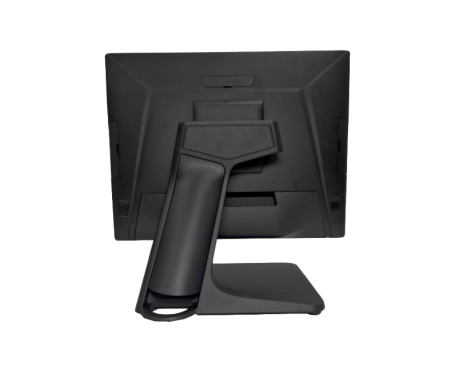

Ares850 POS Terminal
15” All-in-One POS Terminal Powered by 12th Generation Intel® Alder Lake-P Core™ Processor
- 15” all-in-one panel PC with bezel-free touch display
- Power efficient Intel® 12th Gen Alder Lake-P Core™ Processors
- Easy access M.2 SSD for installation and maintenance
- Optional VFD, 9.7” & 15" attached customer display
- Optional MSR, iButton, fingerprint, 2D scanner, RFID, and printer stand
- Support Type-C USB 3.2 Gen1
- Trusted Platform Module 2.0 for data security
- Support NVMe 2.0
特色
High-Performance Intel® 12th Gen Alder Lake-P Core™ Processors
.JPG)
.JPG)
Optional VFD &
9.7”/15" Attached Customer Display
9.7”/15" Attached Customer Display
Easy Access M.2 SSD M-Key
PCI-e Gen 3 x 4 NVME
PCI-e Gen 3 x 4 NVME
Features Highlight
.JPG)
Dimension
I/O Interface
.PNG)
規格
Ares850 POS Terminal
| Display | Display Size: | 15" TFT LCD | |
|---|---|---|---|
| Resolution: | 1024 X 768 | ||
| Brightness/ Color | 300 cd/㎡, 16.2M colors | ||
| Backlight | LED | ||
| Touch Panel | Type: | Projected Capacitive Touch | |
|---|---|---|---|
| Processor | CPU/ Chipset: | Intel® Core™ i5-1245UE Intel® Core™ i3-1215UE | |
|---|---|---|---|
| Memory | X 2 SO-DIMM socket supports up to 32GB |
|---|
| Storage | X 1 (M.2 SSD M-Key supports 2242 & 2280 ) NVME PCI-e Gen3 x 4 X 1 (M.2 SSD M-Key Supports 2242 & 2280 ) only SATA |
|---|
| I/O connectors | USB 2.0: | X 5 (Rear X 4, Side X 1) | |
|---|---|---|---|
| USB 3.2 Gen1 | X 3 (Rear) | ||
| USB Type-C 3.2 Gen1 | X 1 | ||
| WiFi | X 1 E-Key (Supports WiFi & Bluetooth) | ||
| Powered COM | X 3 (RJ45 powered COM 5V/ 12V selected by BIOS) | ||
| Powered USB2.0 | X 1 Powered USB 24V (Retain adapter 150W) | ||
| Cash Drawer Port | X 1 (24V RJ11 cash drawer port) | ||
| Audio Port: Speaker | X 1 (2W) | ||
| Audio Port: Line Out | X 1 | ||
| LAN | X 1 (RJ45 10/100/1000 Base-T) | ||
| DC in | Lockable 3-pin DC input | ||
| Optional Peripherals | VFD/ 2nd display 9.7” & 15"/ MSR/ iButton/ RFID/ Fingerprint/ 2D Scanner/ Printer Stand |
|---|
| Power Supply | 60W/ 90W (option)/ 150W (option) 19V lockable 3-pin power adapter |
|---|
| OS Support | Windows 10 IoT |
|---|
| Environment | Temperature: |
| |
|---|---|---|---|
| Relative Humidity: | 20% to 80% non-condensing | ||
| Dimension (W x H x D) mm | 333 x 220 x 346 mm |
|---|
| Certifications | CE/ FCC/ LVD | |
|---|---|---|
| Protection | IP64 on front bezel | |
|---|---|---|
